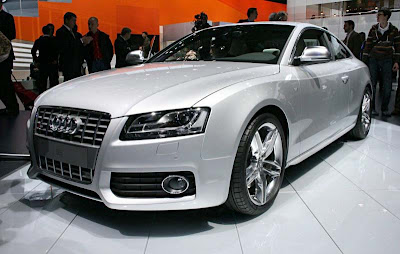

Even when stationary, the Audi A5 makes a dynamic impression: the wide track, large wheels and short overhangs not only characterise its muscular appearance, they also form part of the formula that produces its peerless active driving feel. The Audi A5 coupé defines the new standard in its class for precise steering response, outstanding directional stability and superb agility, while also offering first-class ride comfort.
The Audi engineers have achieved this with a completely new design of running gear: the front wheels are located by a five-link suspension arrangement with upper and lower wishbones. The wishbones are mounted on a subframe, which is firmly bolted to the body for high rigidity. Another completely reengineered component is the rack and pinion steering. It is located in front of the front axle close to the wheel centre line, and enhances the car’s very agile handling by its direct transmission of the steering forces.

Overall, the front axle is located a long way forward for a longitudinal engine configuration with front- and four-wheel drive. This new vehicle architecture makes it possible to have a long wheelbase with a short front overhang, and to optimise the axle load distribution. These are all additional elements that enhance the supreme handling qualities of the new Audi A5. To accomplish this special design, the engineers used a trick adopted from the Audi A8: the front axle differential is located in front of the clutch.
A key element of the rear running gear is its trapezoidal-link rear suspension with completely new kinematics. It provides a high degree of ride comfort combined with excellent directional stability. At both the front and rear, the
main components of the suspension are made of aluminium. The generous dimensions of the brakes are designed to match the car’s high performance ratings. The braking force can be precisely modulated and the kinematics of the new rear suspension significantly reduce the so-called braking dive effect.
The standard electromechanical parking brake, familiar from the A8 and A6, is activated via a button next to the gear lever. The A5 is also available with the option of Audi hold assist: this ensures that the car cannot accidentally roll back after stopping on a hill.

The Audi A5 is nothing if not generous to its driver and passengers. Its generosity begins with its luxurious spaciousness – not just for the front row. On the rear seats, too, the A5 is a full-size touring car. Likewise, with a luggage compartment volume of 455 litres, there is always space left over for a bit of extra shopping, even on a long tour. The loading width of one metre allows easy stowage of large items of luggage, and even well-filled golf bags will fit widthways into the Audi A5 boot. The rear seat folds in two separate sections, and can be released conveniently from the boot.
The extremely high bodyshell rigidity, typical of an Audi, provides the basis both for the car’s crisp handling and its agreeable feeling of solidness and comfort. In the development of the A5 the engineers have successfully
combined supreme sporty performance and agility with outstanding vibrational comfort. Its lightweight body construction was achieved using the latest technologies, such as metal plates with varying wall thicknesses (tailored blanks), combined spot welded and bonded joints, and the use of aluminium, for example, in the front wings.
The smooth surfaces of the additional underbody panel enhance the Audi A5’s inherently good aerodynamics. One small but typical example of the extensive high-precision work carried out in the wind tunnel can be seen in the spoilers moulded into the sides of the tail lights.

Where equipment is concerned, the Audi A5 is characterised by a comprehensive standard specification. This includes 17-inch alloy wheels along with automatic air conditioning, the MMI information and operating system, an audio system with CD player and separate screen, and the automatically opening boot lid. The new comfort key and the electromechanical parking brake are also among the items included in the standard package.
The list of options offers even more luxury class high-tech: Audi adaptive light combines bi-xenon headlights with the dynamic cornering light system and the LED strip of daytime running lights. Keyless access for the doors and boot and keyless engine starting are all features of the advanced key system. The deluxe automatic air conditioning system with three temperature zones allows the passengers to adjust the climate for their individual comfort. The extra-large panoramic tilting roof lends the A5 an especially generous feeling of open space. The Audi parking system advanced features a rearview camera, helping to make tricky parking in cramped multi-storeys easily negotiable.
The infotainment system is a special highlight of the options range. Alongside the navigation system with DVD including MMI, DAB digital radio reception and DVB TV reception, this system also offers pure delight for the ears: the premium sound system for the Audi A5 is supplied by the Danish hi-fi specialist Bang & Olufsen. It comprises 14 speakers, 500 watts of music output, surround sound, active driving noise compensation and, above all, the expertise of a worldwide renowned specialist for high-end audio equipment, making every drive in the Audi A5 a delightful acoustic experience.

The decision to drive a coupé is always a very emotional one. That makes it all the more important for a coupé to reflect the personal wishes and express the ideas of it owner. If any coupé can fulfil special requests, it is the Audi A5: how about seat side sections in stone blue Valcona leather, accompanied by seat centre sections in star silver leather, with matching interior headlining also in star silver? To go with that, you can add aluminium hologram inlays or maybe rather laurel wood? The customer has the choice: in terms of design variety, the Audi A5 is luxury class in the full sense of the word, with two types of cloth, two leather varieties, the combination of leather and Alcantara, five different inlays and a wide range of interior colour schemes. Above and beyond that, the Audi exclusive programme from quattro GmbH can fulfil virtually every individual wish.
For those looking for an even stronger sporting intent in the A5, the Audi S line offers an extra-dynamic look. The S line exterior package comprises, for example, more distinctive bumpers at the front and rear. The S line sports package includes items such as sports seats, steering wheel and gear lever in perforated leather, black headlining, and special inlays. Even here, there is scope for individual choice between matt aluminium, piano finish black or Vavona wood assam grey. The 18-inch alloy wheels and exclusive paint finishes underscore the look of the S line sports package, while the sports suspension provides a distinct driving feel.

The Audi S5 is a unique competitor among high-performance coupés, thanks to its combination of V8 FSI technology and quattro permanent four-wheel drive. The eight-cylinder engine with its superb power delivery has worthy counterparts in the specially tuned sports suspension and high-performance brakes. Subtle, but clear design elements inside and out serve to distinguish this coupé as a high performance athlete in a league of its own. The Audi S5 goes on sale with the launch of the Audi A5 series.

The figures alone are fascinating enough, but they only hint at the impressive driving experience the S5 offers. The eight-cylinder engine has a rated power output of 260 kW (354 bhp). Its peak torque is 440 Nm, which it already delivers at 3,500 rpm. Within just 5.1 seconds the Audi S5 can sprint to 100 km/h. But no figures can adequately describe the supreme free-revving character, the spontaneous response, the continuous power build-up, or the thrilling sound of this eight-cylinder engine. The V8 naturally derives its enormous power potential from the innovative FSI direct injection technology with high compression and optimum fuel mixture formation.
The six-speed manual gearbox with its very precise guiding of the gear lever and short throw action makes every gear change a pleasure. The quattro permanent four-wheel drive of course provides perfect traction with variable torque distribution from its basic setting of 40 percent to the front and 60 percent to the rear axle. Within a fraction of a second, the dynamic drivetrain system adapts to the current driving conditions and constantly delivers the ideal distribution of drive torque.
The Audi S5’s sports suspension is tuned to enhance the coupé’s performance with particularly dynamic handling. The special high-performance brakes, recognisable by their black painted brake calipers, always ensure precise deceleration. And finally, the ESP electronic stabilisation programme can be deactivated in two stages whenever the driver wishes to exploit the potential of the Audi S5 to the full on a suitable stretch of road.

Source: Source: Audi AG
